A must-have for every service truck. Made in USA.
Operating characteristics:
| T&M P/N |
Hold Voltage AC (max.) |
Pick Up VAC |
Drop Out VAC |
Hz |
Replaces MARS |
|
|
|
|
|
|
| TPR-63 |
170 |
140-153 |
30-65 |
60 |
19163 |
| TPR-64 |
395 |
245-275 |
60-140 |
60 |
19164 |
| TPR-65 |
336 |
171-184 |
55-90 |
60 |
19165 |
| TPR-66 |
395 |
208-239 |
60-130 |
60 |
19166 |
| TPR-67 |
420 |
300-328 |
75-121 |
60 |
19167 |
| TPR-68 |
495 |
323-352 |
75-135 |
60 |
19168 |
| TPR-69 |
336 |
180-195 |
40-105 |
60 |
19169 |
| TPR-70 |
253 |
285-305 |
35-77 |
60 |
19170 |
| TPR-71 |
420 |
212-232 |
60-121 |
60 |
19171 |
Additional Product information:
- OEM-grade
- 35A contacts rated for 200,000 operations @ 400VAC
- 0.25″ Quick Connect terminals for fast installation
- UL, CUL, CQC, ENEC approved/recognized
- EN60079-15:2010 compliant for use with flammable refrigerants
- ROHS Compliant
Technical Notes
- TPR series relays are calibrated for 60 Hz. When used at 50 Hz, Pick-Up voltage will be approximately 13% lower.
- Mounting Orientation: TPR series Relays are calibrated for Position 3 (tab up). Mounting in other orientations may slightly affect Pick-Up and Drop-Out values.

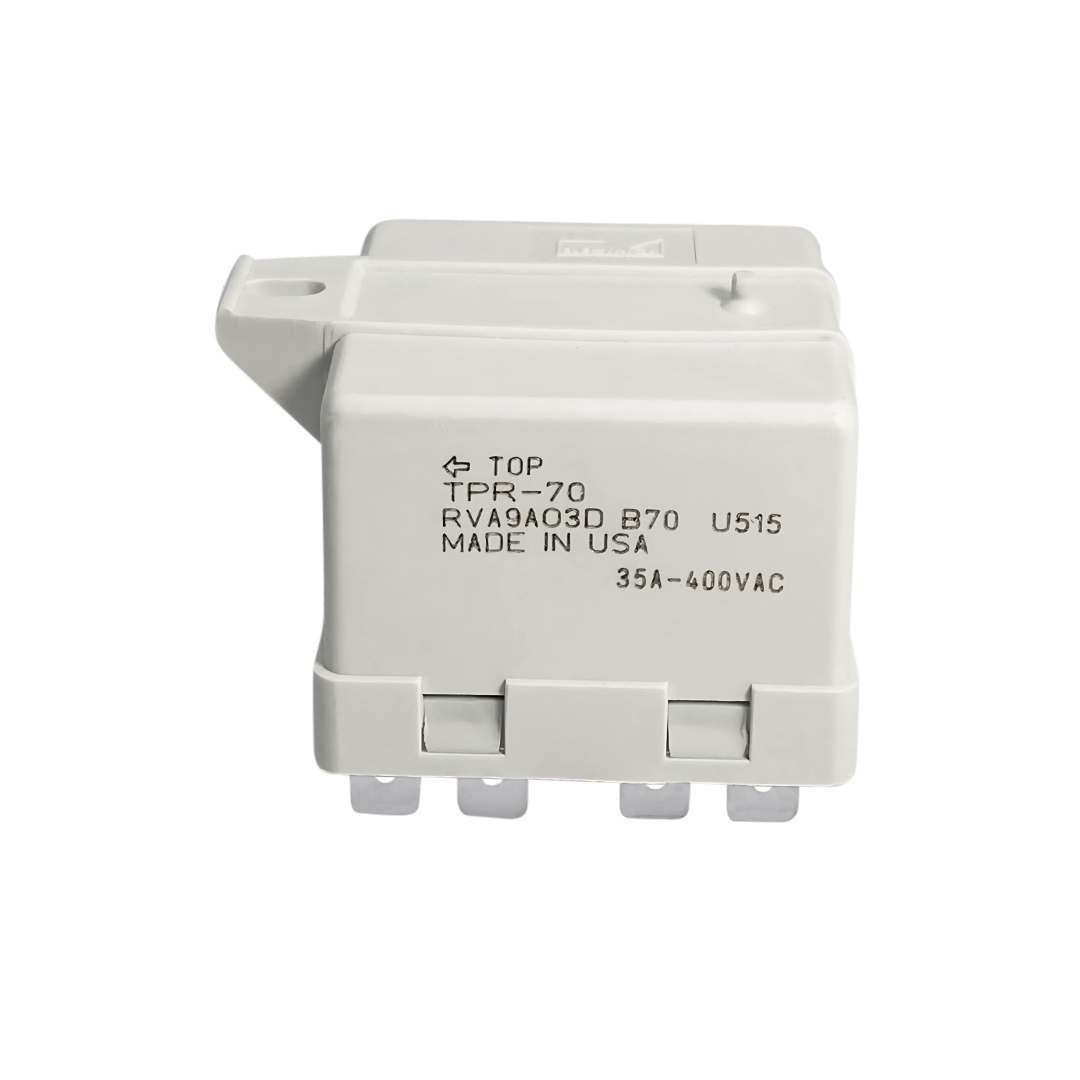

Motor Start Potential Relay - Original Manitowoc Ice PN 2002053 Electrica PN RVA 7AA3D
$42.00
